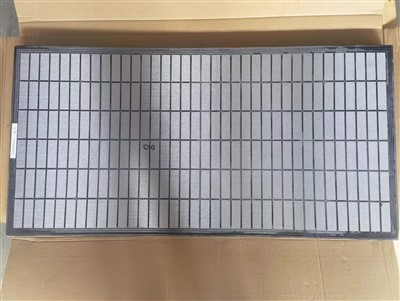

1250x635mm Oil Field Replacement Shale Shaker Screen

Hebei Swako Wiremesh Products Co., Ltd. is one of the leading manufacturers and suppliers of 1250x635mm oil field replacement shale shaker screen in China. Please feel free to wholesale high quality products for sale here from our factory. We also accept customized orders.



1250x635mm Oil field Replacement shale shaker screen

Replacement Screens for Brandt King Cobra/Hybrid Shale Shakers

















































Brandt king cobra shaker screen(also Brandt Hybrid shaker screen) are produced as the replacement screen for Brandt King Cobra/Hybrid shale shaker. There are steel frame screen and PT frame screen for different drilling mud applications. Now our technical department has developed a new type of injection molding framework which is integrated with the rubber strip. This greatly improved the wear resistance of the shaker screens and effectively reduce the cost of mud treatment.

Brandt king cobra shaker screen(also Brandt Hybrid shaker screen) are used as the substitute screen for

Brandt King Cobra/Hybrid shale shaker.

Competitive Advantage

Composite frame and PT frame optional.

Increased fluid handing capability, decreased cost of ownership.

Increased operational flexibility through compatibility in all drilling fluids.

Manufactured according to the API RP 13C (ISO 13501).

Scientific & reasonable cost control system for competitive price.

Adequate inventory in the shortest time to meet customers' demand.

                                     steel label on the screen



                                           the steel back supporting framework



                                 Top-quality stainless steel wire mesh cloth



Performance Parameter

Screen Designation	Mesh Type	API RP 13C Designation	Conductance Number	D100 Separation (microns)	Non-blank area (sq.ft)
SWK-KC/Hybrid-A325	XR/XL	API 325	0.33	44	5.95
SWK-KC/Hybrid-A270	XR/XL	API 270	0.42	54	5.95
SWK-KC/Hybrid-A230	XR/XL	API 230	0.45	61	5.95
SWK-KC/Hybrid-A200	XR/XL	API 200	0.62	72	5.95
SWK-KC/Hybrid-A170	XR/XL	API 170	1.02	86	5.95
SWK-KC/Hybrid-A140	XR/XL	API 140	1.03	106	5.95
SWK-KC/Hybrid-A120	XR/XL	API 120	1.40	134	5.95
SWK-KC/Hybrid-A100	XR/XL	API 100	1.67	159	5.95
SWK-KC/Hybrid-A80	XR/XL	API 80	2.36	193	5.95
SWK-KC/Hybrid-A70	XR/XL	API 70	2.78	230	5.95
SWK-KC/Hybrid-A60	XR/XL	API 60	3.35	274	5.95
SWK-KC/Hybrid-A50	XR/XL	API 50	4.91	296	5.95
SWK-KC/Hybrid-A35	XR/XL	API 35	9.13	529	5.95
SWK-KC/Hybrid-A20	XR/XL	API 20	11.77	781	5.95
* D100: Particles this size and larger will normally be discarded. * API: Corresponding API sieve equivalent as per API RP 13C. * Conductance No.: This represents the ease with which a liquid can flow through the screen.Larger values represent higher volume handing.

                                                                 Workshop



                                                                                   Delivering



                                                                    The screens reach customers



                                                                  Customers are checking the screens
